Yamaha EMX212S Powered Mixer w/A10 PA Speaker

Integrated Solutions for Superior Live Sound

Experienced musicians, performers, speakers, and club operators know the importance of a high-quality sound system with the right features and performance to deliver their sound. Where portability and convenience are important criteria, a system based on a high-performance Yamaha EMX-series powered mixer is definitely the way to go. In one integrated, portable unit you have a mixer to combine and balance your microphone and instrument and line sources, effects to refine and polish your sound, and power to drive the main speakers and even monitor speakers as well. But that's nowhere near the whole story - Yamaha EMX-series Powered Mixers offer a range of features that let you mix, process, and deliver your sound with maximum quality and creative control ... and, of course, that unrivalled Yamaha sound.

This includes a Yamaha A Series A10 PA Speaker that features an optimally matched high-power woofers, compression drivers, and constant-directivity horns that deliver your sound to every corner of the room with every subtle nuance intact.

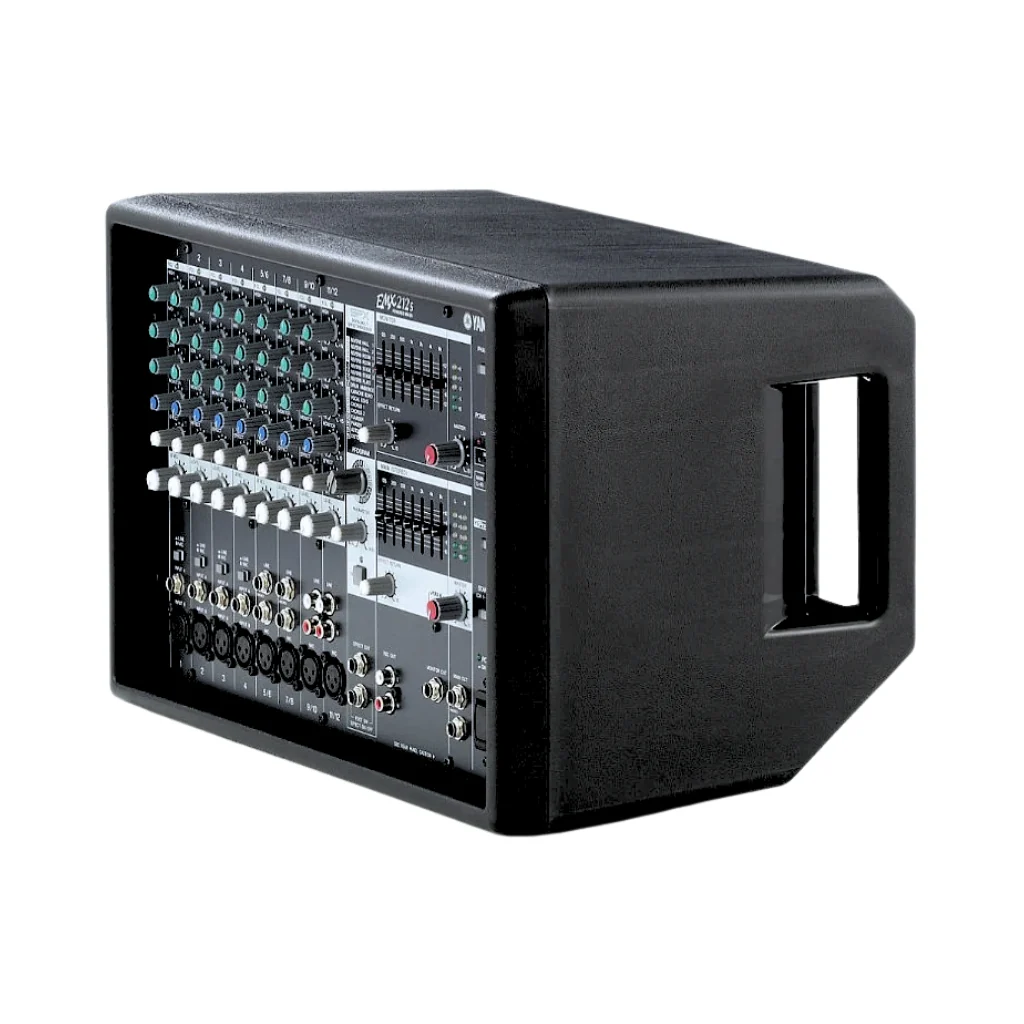

EMX212S

• All-in-one for Easy Operation and Fast Setup
• Superior Sound through Painstaking Design and Parts Selection
• Intuitive, Functional Controls and Connectivity
• Built-in SPX Effects
• High-efficiency Power Amplifiers
• Lightweight, Practical Design
• Uncompromising Reliability and Safety Standards
• Forced Air Keeps the System Cool Even in Difficult Conditions
• New Compressor Circuit on the EMX512SC and EMX312SC
• Practical Utility Features
• Yamaha Speaker Processing
• Power Amp Mode Selector

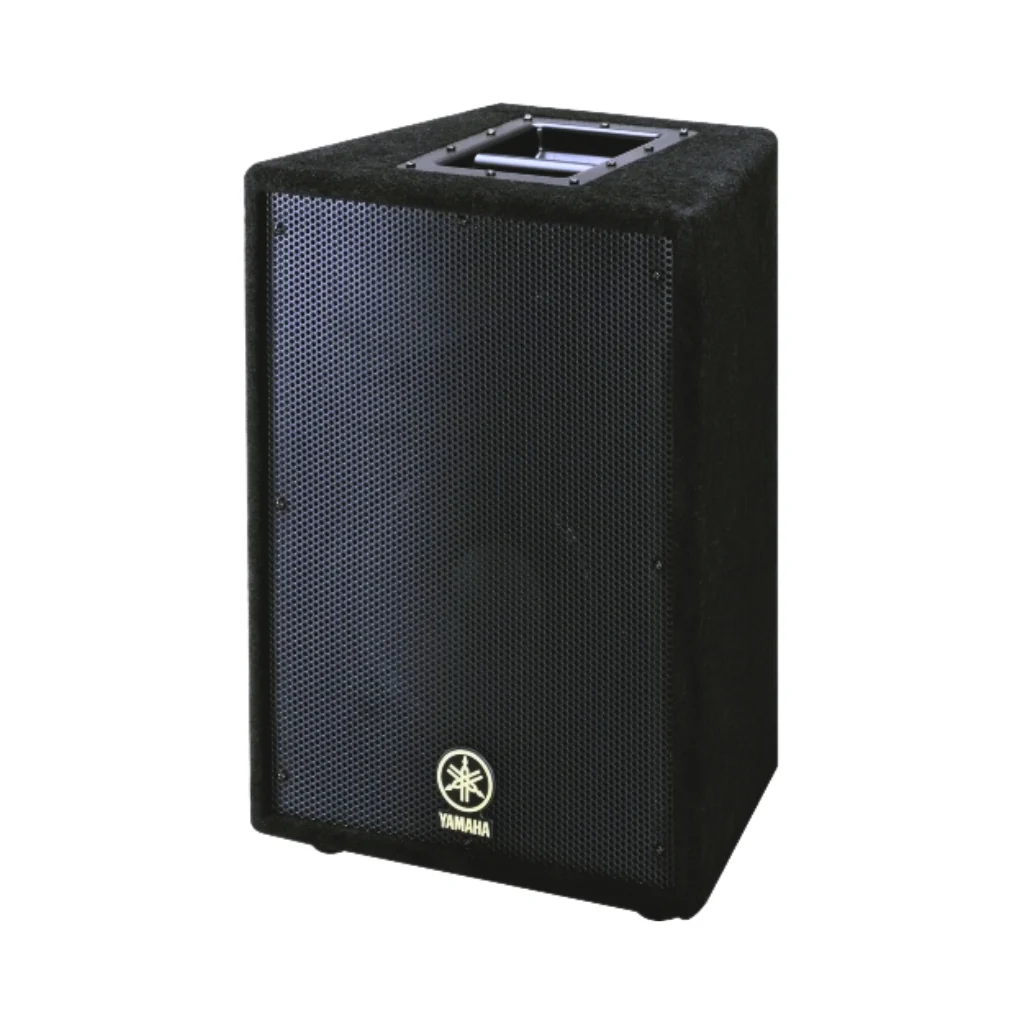

A10

• High power woofers, dynamic compression drivers and constant directivity horns mean that sound quality has not been compromised
• The A series share the same attention to detail and build quality-control as the top-end Yamada V series PA speakers
• With robust carpet finish, durable metal grill and steel carry handles
• The addition of a Speakon™ connector ensures these speakers will easily slot into many existing setups
• A series speakers offer solutions for a wide variety of applications

EMX212S

Maximum Output Power	220 W / 4 Ω; 130 W / 8 Ω (@ 0.5% THD at 1 kHz)
Frequency Response	-3, 0, 1 dB 20 Hz - 20 kHz (ref to nominal output level @ 1 kHz)
Total Harmonic Distortion (THD+N)	Less than 0.5% (+14 dB @ 20 Hz, 1 kHz, 20 kHz, GAIN control: all nominal)
Hum & Noise (EIN)	-115 dBu, Rs = 150 Ω CH 1-4 MIC/LINE: MIC
Crosstalk	-65 dB @ 1 kHz
Input Connectors	CH 1-4: XLR and Phone; CH 5/6, 7/8: XLR and Phone; CH 9/10, 11/12: XLR and Pin
Channel EQ	HIGH, MID, LOW
Graphic Equalizer	7 Band (125, 250, 500, 1 k, 2 k, 4 k, 8 kHz): Main (Stereo) and Monitor
Phantom Power	15 V
Digital Effects	SPX Digital Multi Effector (24 bit AD/DA, 32 bit Internal Processing): 16 Programs
Power Amp Mode	Main L/R, Main (L+R)/Monitor
Foot Switch	On/Off
Power Requirements	120 V 60 Hz
Power Consumption	270 W
Product Dimensions (W x D x H)	442 x 274 x 286 mm (17-3/8" x 10-3/4" x 11-1/4")
Product Weight	10 kg

A10

Speaker Type	2-way bass reflex
Frequency Range (-10dB)	65Hz - 20kHz
Components (LF)	10" cone
Components (HF)	1" VC, Horn-TW
Power Rating (Noise)	125W
Power Rating (Program)	250W
Power Rating (Peak)	500W
Nominal Impedance	8Ω
SPL Sensitivity (1W; 1m on axis)	98dB SPL
Nominal Coverage	H90° / V40°
I/O Connectors	Speakon x 1, Phone x 1
Pole Socket	35 mm
Product Dimensions (W x H x D)	385mm (15-3/16") x 535mm (21-1/16") x 307mm (12-1/16")
Net Weight	14.4Kg
